LLM API Visor

Sidebar visor for Agent Zero LLM API wallet credits, quota multiplier, local usage insights, and dashboard shortcuts.

Author 3clyp50 5 stars Version 0.2.0 Updated
LlmApiUiMonitoring
GitHub Repository Discussion How to install

Screenshots

LLM API Visor screenshot 1LLM API Visor screenshot 2LLM API Visor screenshot 3LLM API Visor screenshot 4

README

LLM API Visor

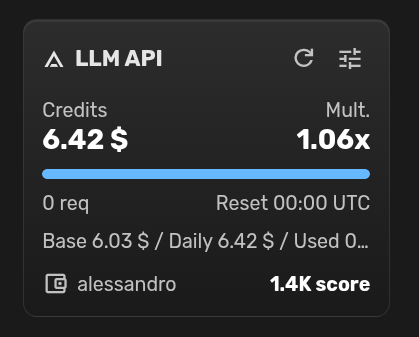

LLM API Visor adds a compact Agent Zero LLM API status panel to Agent Zero's left sidebar. It is designed around the wallet-specific Free Daily API Credits number from the dashboard: remaining daily credits, current dynamic quota, base quota, used quota, request usage, reset-cycle progress, and the current quota multiplier.

The plugin reads the official Agent Zero API dashboard endpoints through a small Agent Zero backend proxy. No LLM API key is stored or displayed by this plugin.

What It Shows

  • Wallet remaining daily API credits as the primary sidebar value.
  • Wallet base quota, current dynamic quota, used quota, and request count.
  • Current quota multiplier and reset-cycle progress.
  • Optional public wallet A0T, ETH, stake score, and API stake total.
  • Explicit global pool view when wallet metrics are disabled.
  • Top wallet model usage when the dashboard returns it.

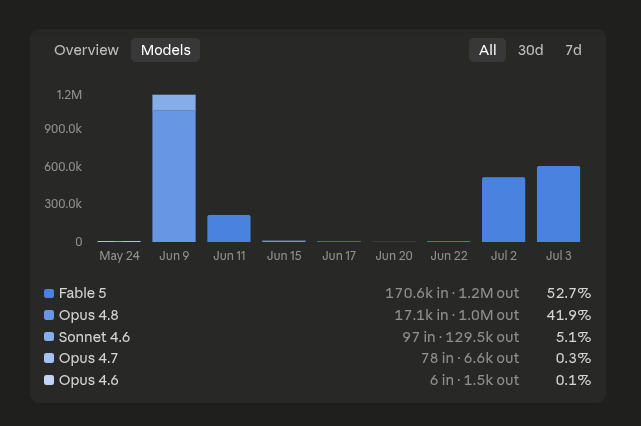

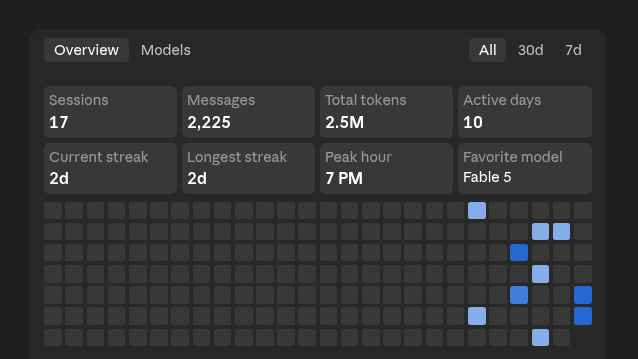

  • Optional local usage insights for daily requests, token totals, credits used, model split, streaks, peak hour, and a lightweight activity heatmap.
  • Sidebar personalization for accent color, panel background, progress bar, multiplier, usage row, quota details, and wallet line visibility.

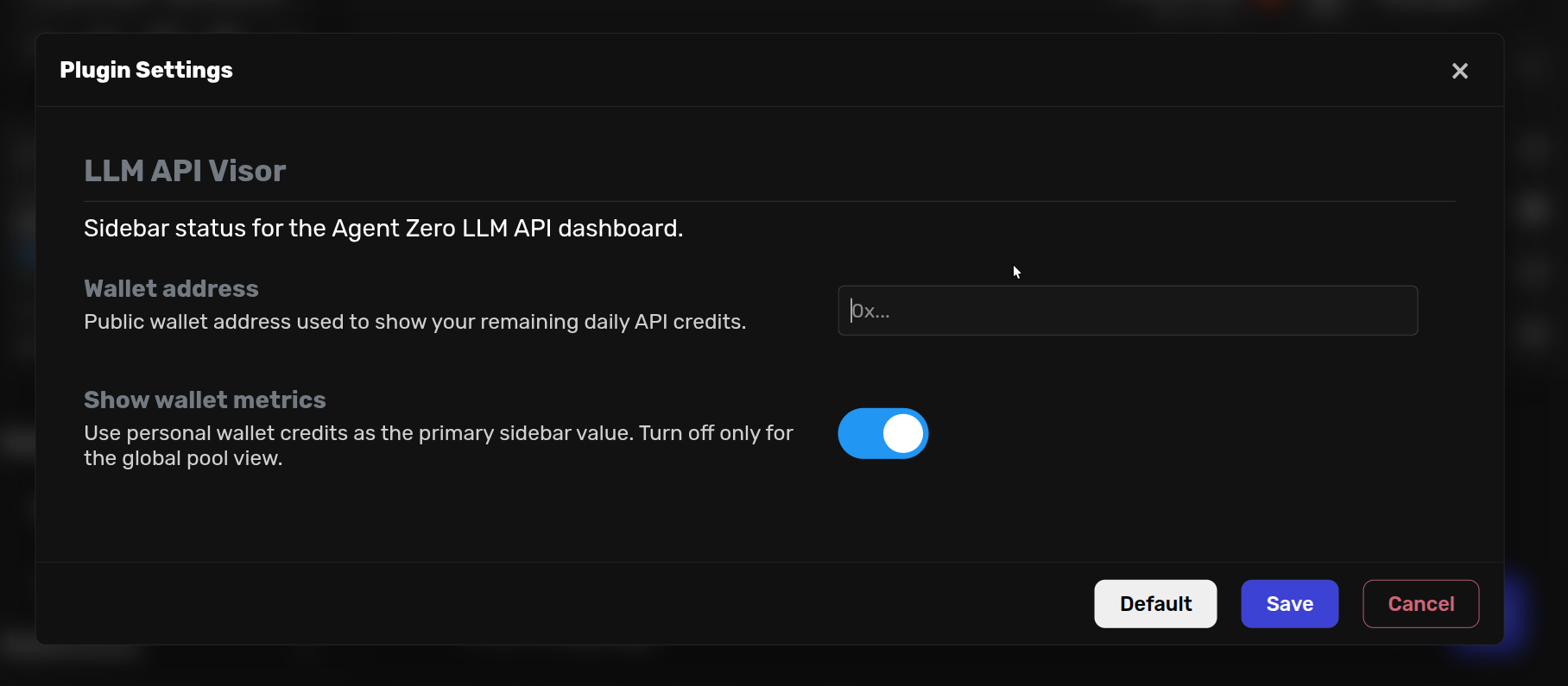

Configuration

Open Settings -> External Services -> LLM API Visor.

  • Wallet address: Base/Ethereum-style 0x... public address used to load the personal daily credits shown on the dashboard.
  • Show wallet metrics: keeps wallet daily credits as the primary sidebar value. When disabled, the visor shows an explicit global pool view instead.
  • Personalization: controls the sidebar accent color, background style, and which rows are visible.
  • Usage insights: optional local-only tracking. It stores aggregate usage statistics in the plugin's own data/ folder and never records prompts, messages, API keys, or secrets.

Community Plugin Layout

This directory is ready to be used as the root of a standalone community plugin repository:

plugin.yaml
default_config.yaml
README.md
LICENSE
api/
extensions/
helpers/
screenshots/
webui/

For Agent Zero Plugin Index submission, the plugin.yaml name field and the index folder name should both be a0_llm_api_visor.
